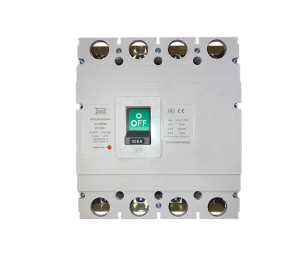

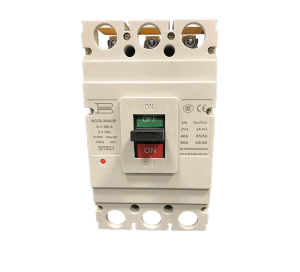

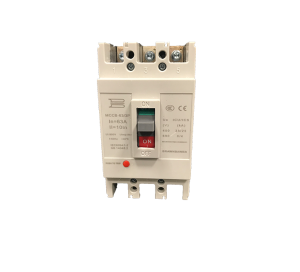

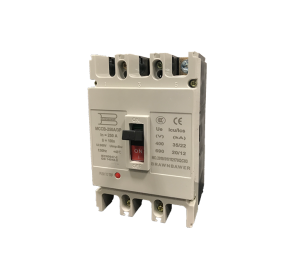

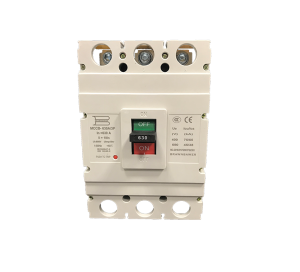

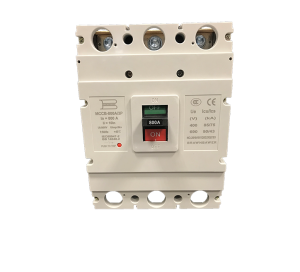

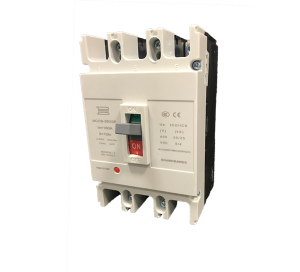

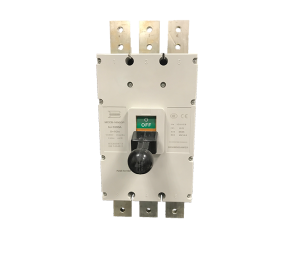

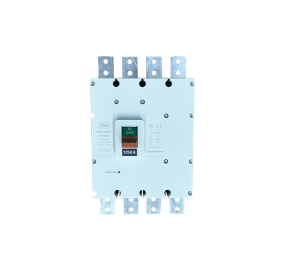

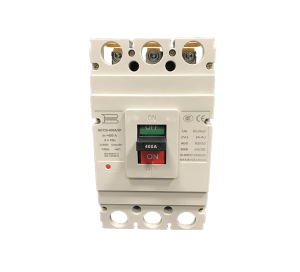

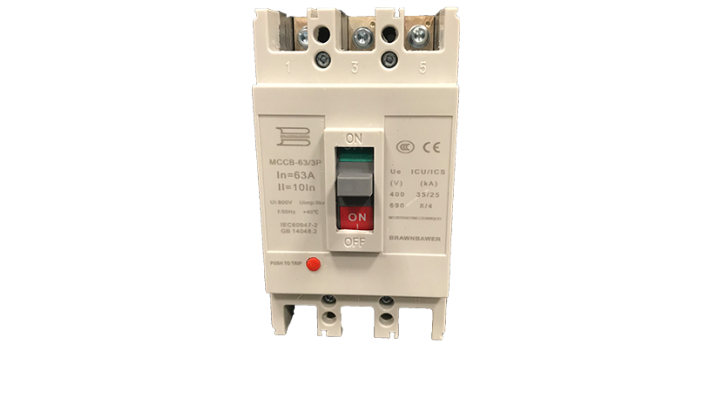

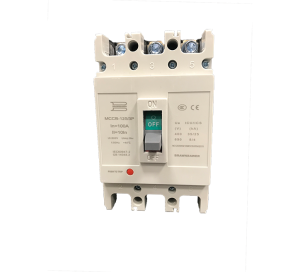

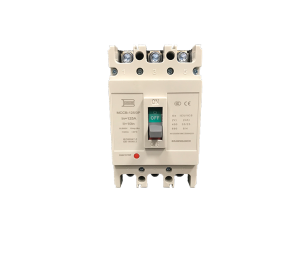

BBCB Series Intelligent MCCB’s - Moulded Case Circuit Breaker’s

Moulded Case Circuit Breaker (MCCB)is new circuit breakers which combined the international advanced design, manufacturing technology and develop . According to its rated limit short circuit sectional capacity (ICU), is divided into L-type (standard type), M-type (high break type), H-type (higher break type).It has the characteristics of small size, high breaking, short flying arc and anti-vibration, and is an ideal product for land and ship use. Its rated insulation voltage 800V (BBCB-63 is 500V), suitable for AC 50HZ, 690V and the following circuit for continuous frequent conversion and motor infrequent start-up. Circuit Breaker has overload, short circuit and under-voltage protection device, which can protect the line and power equipment from being damaged. Vertical installation and horizontal installation Meet the standards: IEC60947-2、GB14048.2

1. It is supplied with rated insulating voltage 660V and used for circuit of A.C.50Hz, rated operating voltage AC 380V(or below), rated operating current up to 1600A for infrequent over and starting of the motors.

2. Equipment with the protection devices for over current, short circuit and undervoltage, the products are capable of preventing damage of circuits and supply units.

3. The products conforms to GB14D48.2,IEC60497-2 standards.
