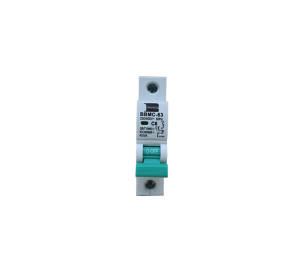

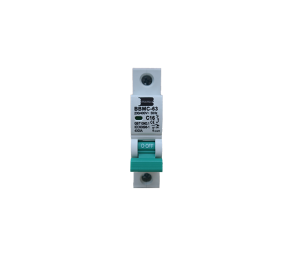

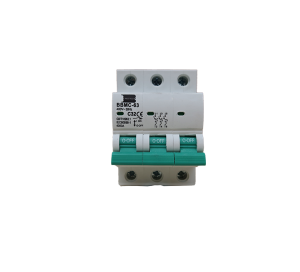

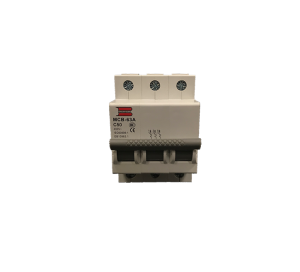

BBMC Series Intelligent MCB’s - High Breaking Miniature Circuit Breaker’s

This product is suitable for short circuit protection and overload protection, it is used in distribution system for lighting distribution systems or motors. It has compact appearance, light weight, excellent performance, reliable high breaking capacity, rapid release, rail installation, shell and components are made of high impact resistance and flame retardant plastics and long service life, it is mainly used for overload and short circuit protection for power supply which is AC 50Hz, rated voltage to 400V, rated current to 63A, at the same time, electrical equipment and lighting circuits can be broken down frequently under normal conditions.

1. Rated current of circuit breaker:63A、80A、100A、125A

2. Poles of circuit breaker: 1P, 2P, 3P, 4P

3. The circuit breaker is an embedded installation (mounted on the mounting rail)

4. Rated working voltage of circuit breaker

5. Rated breaking capacity: Icn=10000A，Ics=7500A

6. Over current tripping characteristics are shown in Table 1 (ambient temperature is 30 ~35 C)
